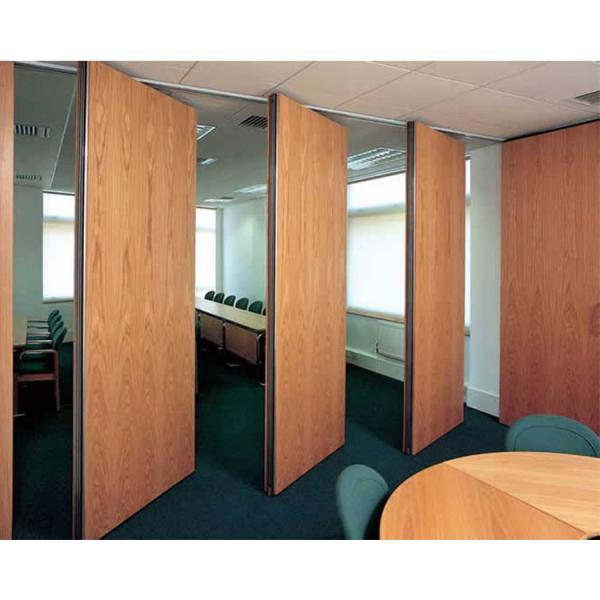

Wooden Finish Movable Partition Wall Framed Construction for Office

Brand Name : AE

Model Number : AE65

Certification : ISO9001 SGS CANS

Place of Origin : Guangdong, China

MOQ : 10 Square Meter

Price : USD 79-108 per square meter

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 SQUARE METER PER MONTH

Delivery Time : 20-30days for 10-100㎡, if more than 100㎡need to be negotiated

Packaging Details : foam layer and hard cardboard with plywood case or steel pallet

Product : Movable Partition Wall

Base Board : Customer-supplied Materials

Compliance : Meeting room

Thickness : 68CM

STC Rating : 42-56dB

Dimensions : Customization (Height: up to 4.5M, Width per Panel: up to 1.2M)

Name : Movable Partition Wall

Contact Now

Wooden Finish Movable Partition Wall Framed Construction for Office

With sound insulating operable partition walls you can divide a bigger space quickly into individual- and team work, meeting and education suitable uninterrupted parts.

Quality Service:

1. We can follow your design to produce

2. Quick turnaround on free quotes (1-6 business days depending on project size)

3. Product specifications and value-engineered alternatives

4. Provide submittal drawings

5. On time deliveries

Roller Option & Feature:

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m,

Specification:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight
